High-precision machining centre, 6 to 9 axes, milling/turning from bar stock, back machining unit, parts fully machined in a single cycle, positioning accuracy

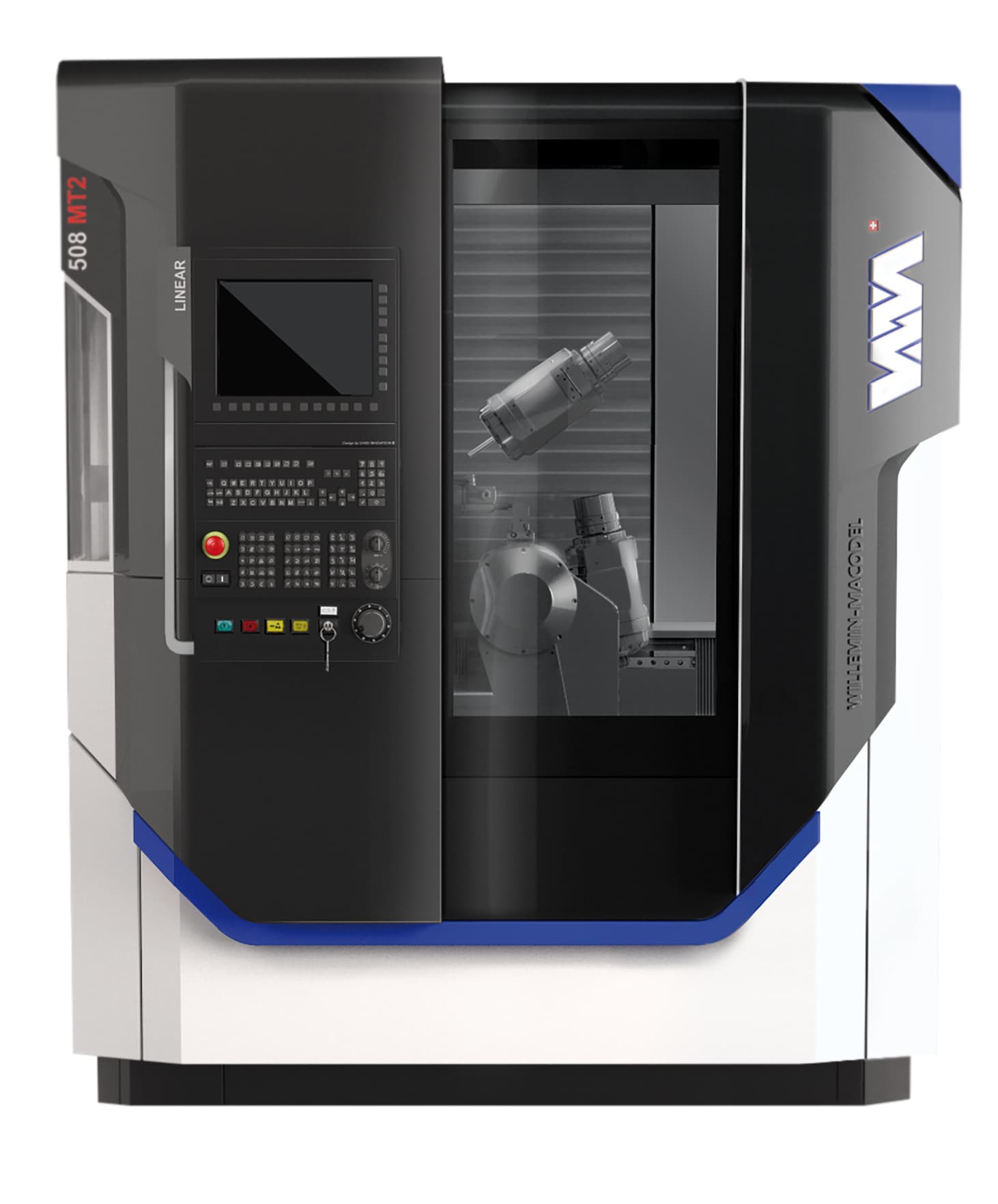

The 508MT2 is a multi-process machining centre dedicated to machining complex parts from bar stock or in one-piece mode. It is equipped with a swivelling powered spindle fitted on a B-axis and a high-precision A-axis spindle/divider enabling turning operations up to 8,000 rpm. As an option, it is possible to machine bars up to 65 mm in diameter.
The 508MT2 machining centre can be equipped with an innovative pickup turret with 3 usable positions including a counter-spindle, a precision vice and a tailstock centre. To meet specific requirements, the 508MT2 can be equipped with a turning turret with eight fixed posts, a rotary tailstock centre and an integrated back workinig vice.
Benefiting from the latest technological developments and Willemin-Macodel's comprehensive expertise in high-precision machining from bar stock, the 508MT2 is perfect for cutting-edge industries such as watchmaking, jewellery, medical, aerospace and high-precision mechanical sub-contracting.
