High quality saw technology: KLAEGER automatic bandsaw

Highlight PRODEX KLAEGER: Saw technology of high quality

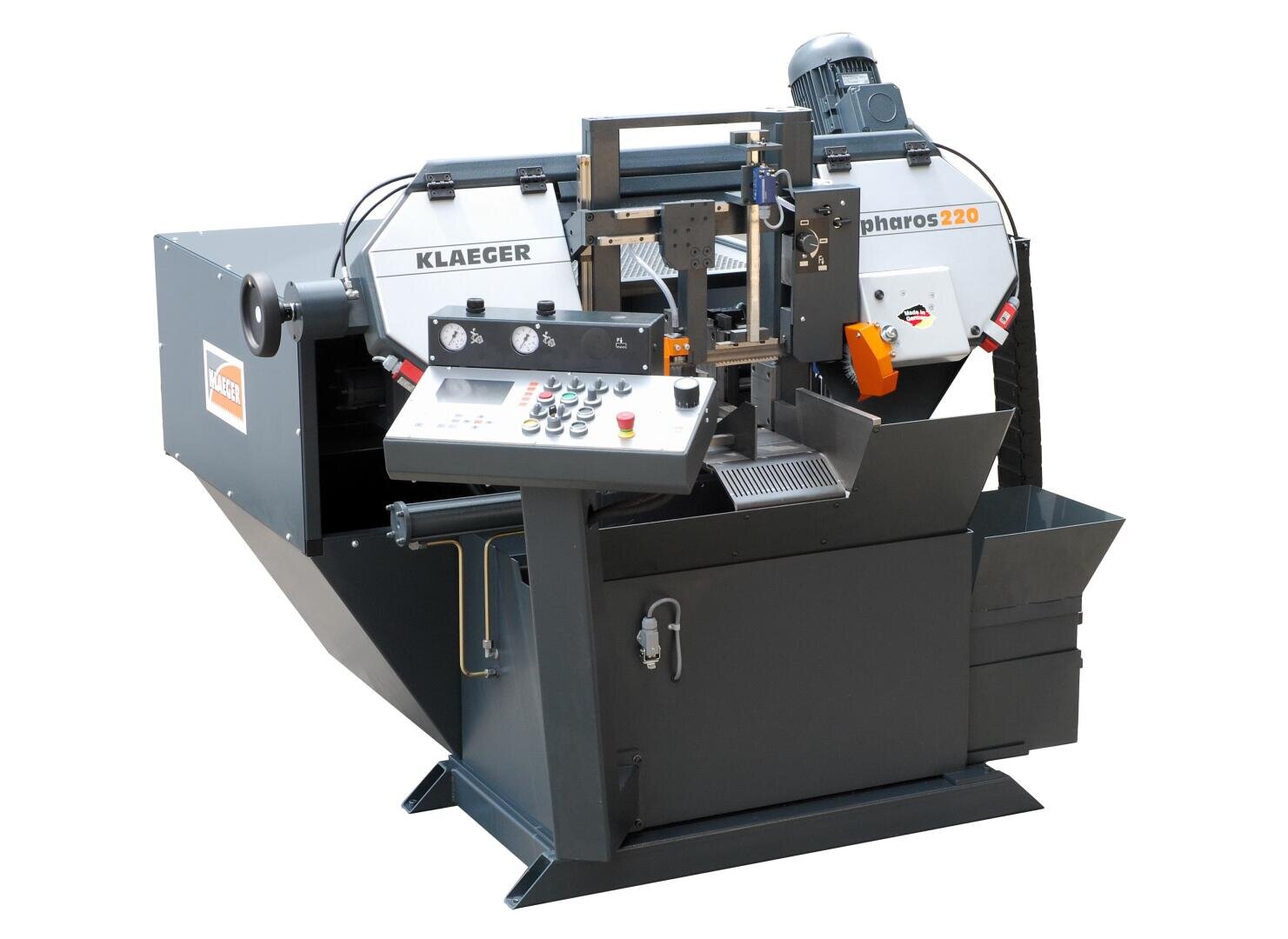

automatic bandsaw with double pillar KLAEGER pharos220SmartCut

Main characteristics:

High precision linear bearings mounted on robust columns.

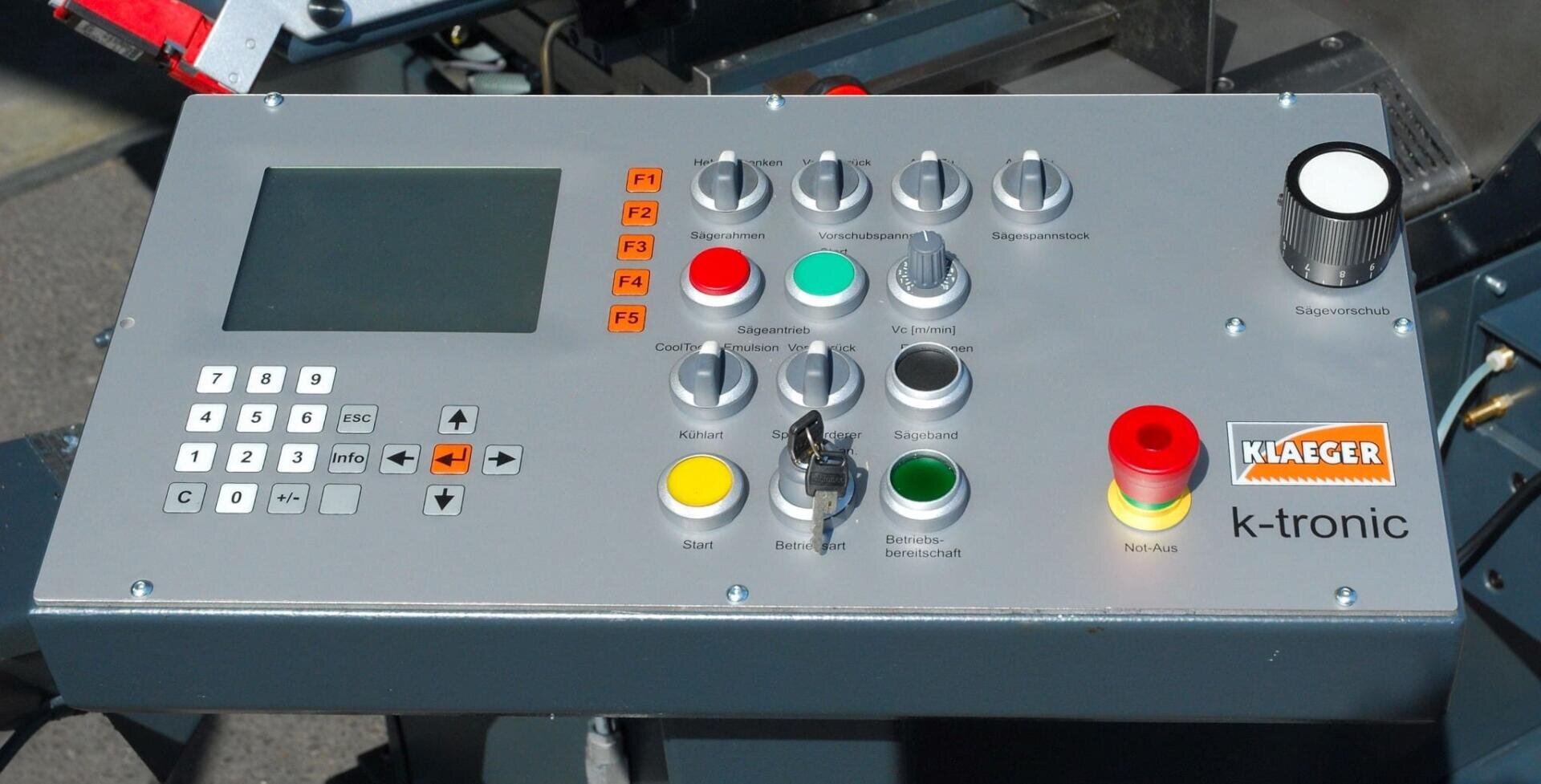

CNC-2 axes control k-tronic with  SmartCut process optimisation: Intelligent choice of process parameters to achieve optimal cutting rates and surface quality

The criterion for precision:

Ballscrew-spindle free of clearance handles heavy material with utmost precision. Material loading is realised from the top with crane directly on strong transport vice. Working area is protected with security covers and sliding doors.„POWER BOX“: ADAPTIVE control of the feed rate by measurig the cutting pressure, semi- and automatic operation, automatic positioning of the guiding arm. Small overall dimensions length x width x height: 1950 x 1550 x 1200 mm

Range:

Round : 220 mm

Square: 220 mm


Included in the phraos standard equipment:

Unique: The option SmartCut: Intelligent sawing for the professional

• Feed drive with high precision servomotor with ballscrew spindle
• 3 sawing modes: Sawing at the fixed choosen feed rate; feed rate variable up to the max. cutting pressure; power sawing with fixed cutting pressure
• Function smoothly sawing when entering the workpiece: Action range and reduction of feed rate preselectable
• Function smoothly sawing when leaving the workpiece: action range and reduction of feed rate preselectable
• Function notching: Depth of cut reduction freely adjustable
• Function sawing start for new bandsaws: Saves you money!
• Display of cutting feed (target and present values); Feed rates are preselectable
• Display of cutting pressure (target and present values): the max. cutting pressure is preselectable
• Display of the actual height of cutting
• Display of the numbre of cuts per mounted band saw
