Quick change diameter

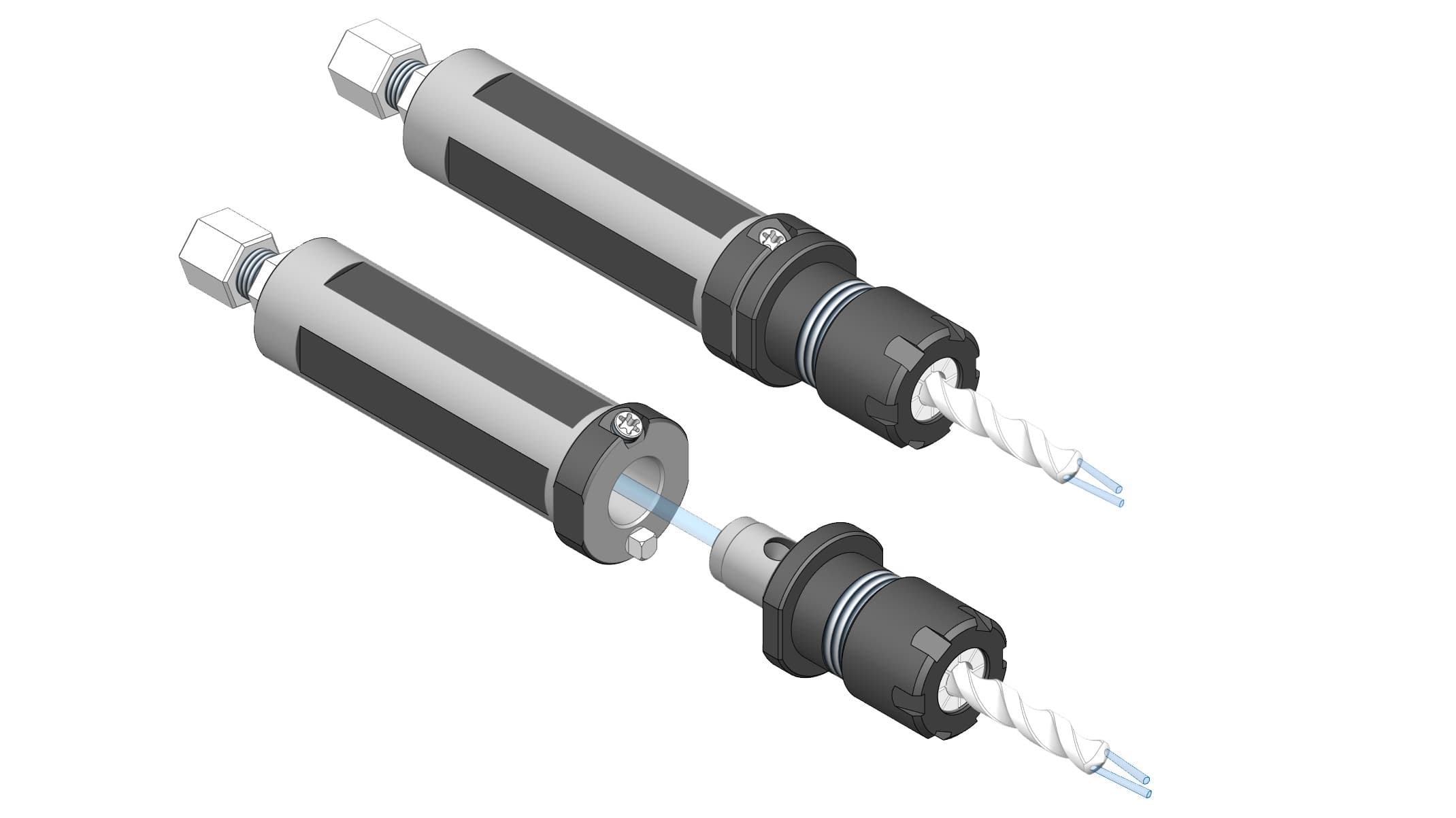

"Quick change diameter" is a modular, quick change system of tool-holders with cylindrical shaft for automatic lathes. With this system, It is no longer necessary to remove the tool-holder from the drill unit!

  • Quick change, without having to remove the tool-holder from the drill unit !
    Quick change, without having to remove the tool-holder from the drill unit !
  • Several types of interchangeable heads available.
    Several types of interchangeable heads available.

Advantages of the "Quick change diameter"

  • Quick change, without having to remove the tool-holder from the drill unit !
  • Presetting is possible outside of the machine.
  • With inner coolant. Hydraulic connector G1/4“ or G1/8“.
  • Ultra precise fitting of the interchangeable head. Rigid fixation.
  • Different tool-holder diameters available : 20 mm, 22 mm, 25 mm and 3/4”.

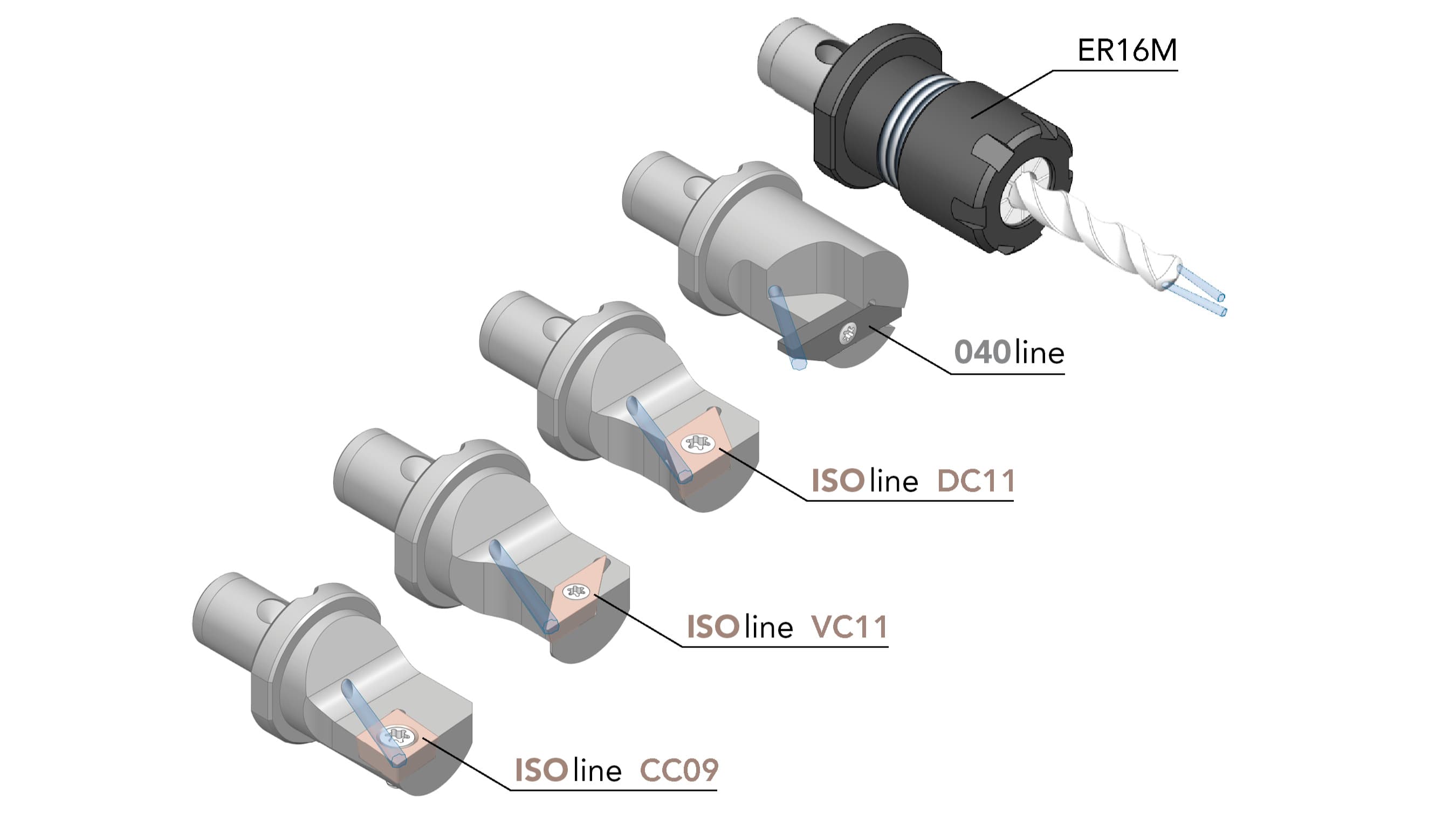

  • Several types of interchangeable heads available:
    • ER16M collet.
    • inserts types 040line (040R) and ISOline (CC09R, DC11R and VC11R).
