Showcase PRODEX 2019

A complete series with perfect thread quality

A manufacturer in the medical sector had high demands on the thread quality for its products. DC Swiss offered him a solution with maximum process reliability and a radius correction of only 0.03, as well as a resource-efficient service life of 2500 pieces.

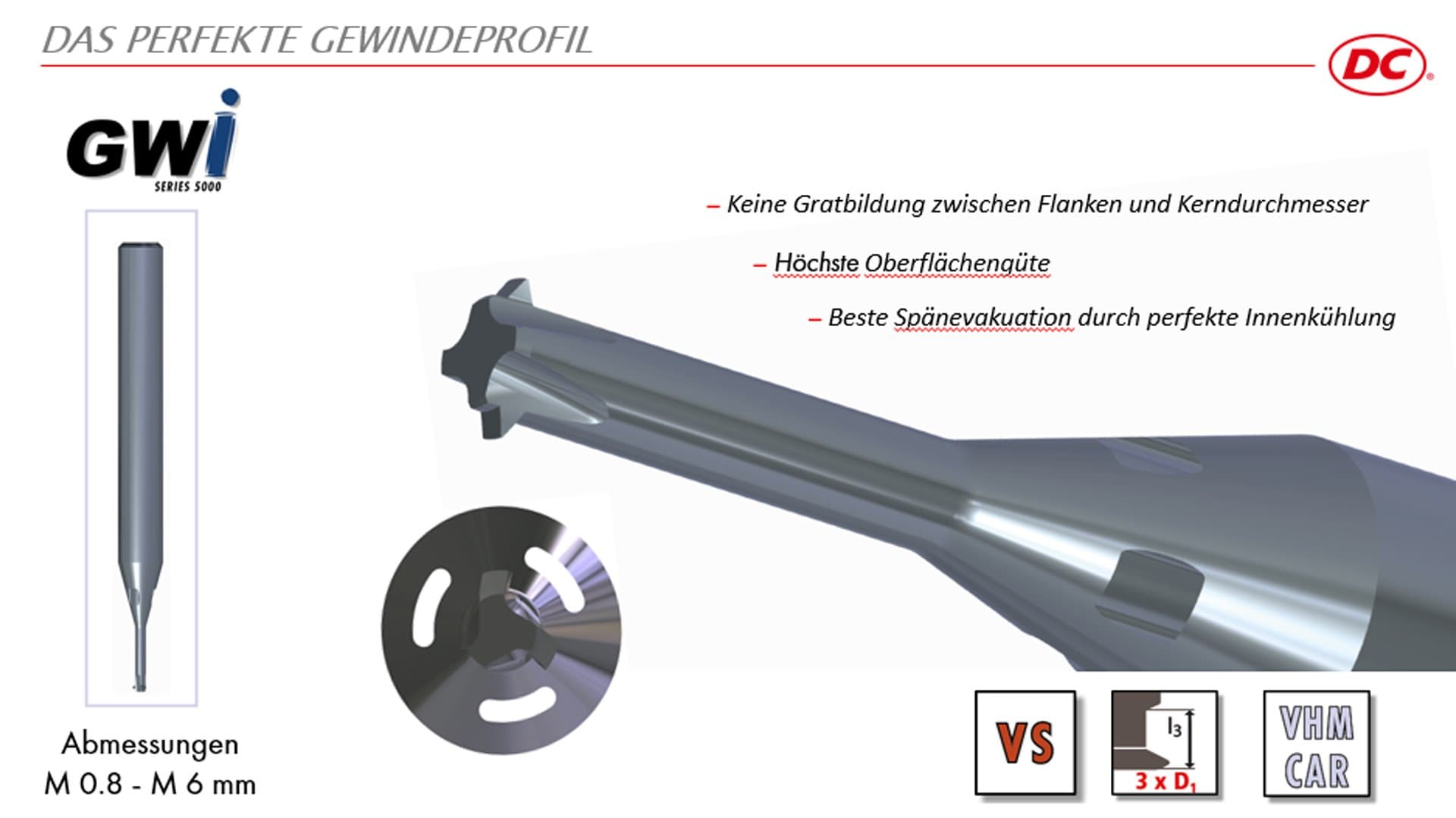

  • Thread whirler GWi 5000, with internal coolant and patented cutting geometry
    Thread whirler GWi 5000, with internal coolant and patented cutting geometry

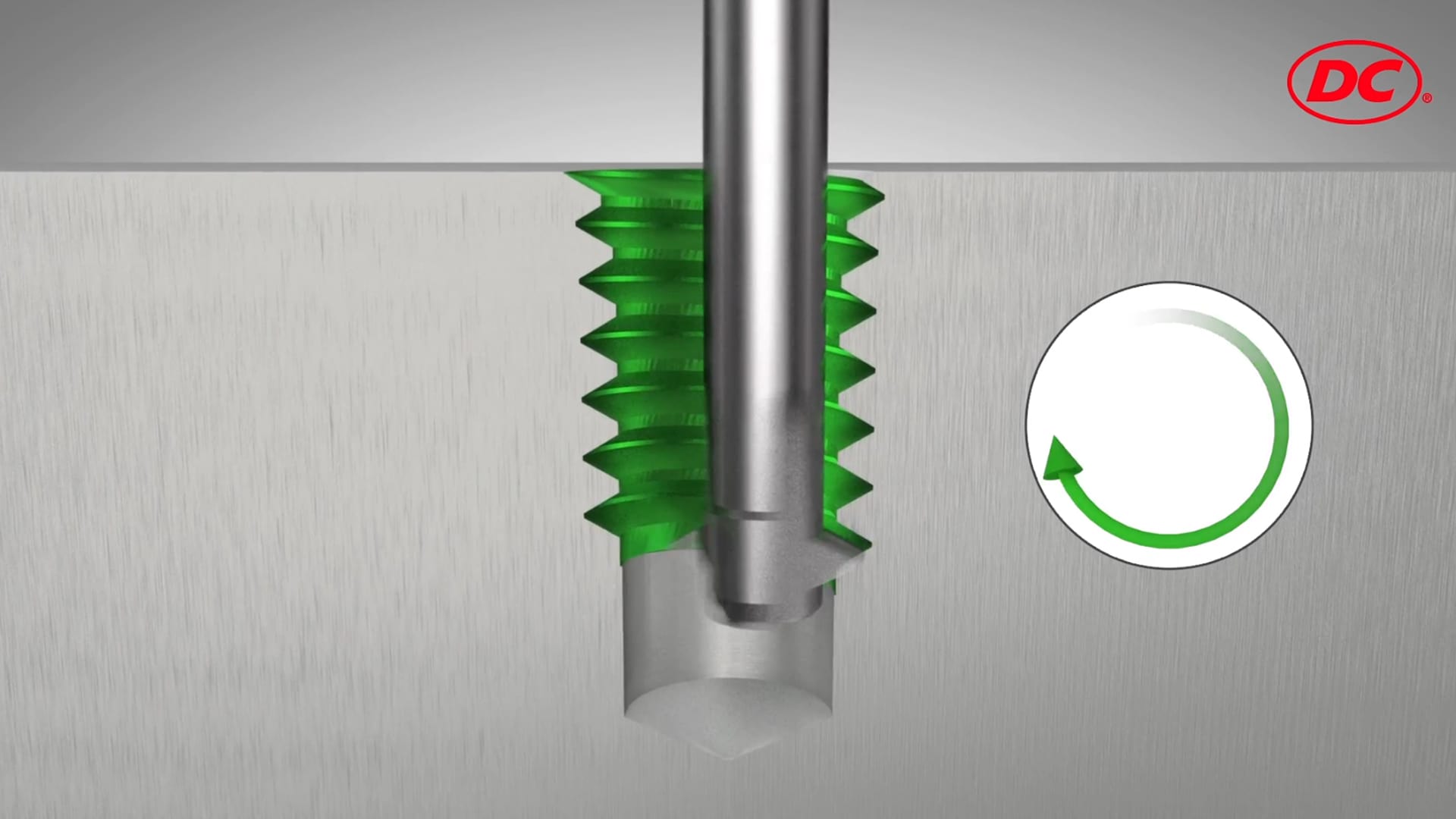

  • Thread whirler GWi 5000 in action
    Thread whirler GWi 5000 in action
  • The perfect thread manufactured with the thread whirler GWi 5000
    The perfect thread manufactured with the thread whirler GWi 5000

Our customer, an international manufacturer of medical and dental products, requires a high-precision thread for his products. The thread was realized according to the following technical specifications:

  • Blind hole M1.8 x 0.35, whirled
  • Tool: Thread whirler GWi 5000, with internal coolant and patented cutting geometry
  • Material: Titane, grade 4, thread for dental products
  • Cutting data: 3 m/min., feed per tooths 0.03 mm
  • Thread depth: 2 x D

The customer was deeply impressed with the process stability and the single radius compensation of 0.03 and a tool life of 2500 pieces.

Conclusion: A complet series with the perfect thread quality, 100% according to standard.
